Shatter Resistant Curtain Wall Window Safety And Stable High Accuracy

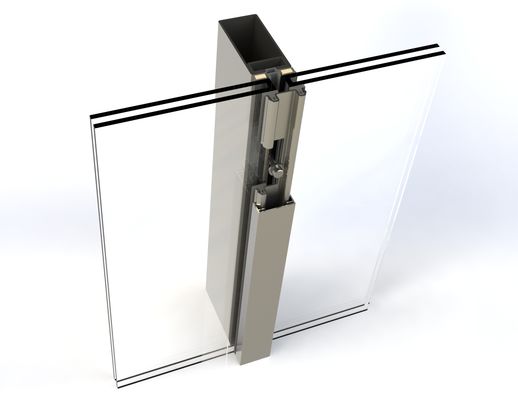

This partition frame system features an internally extended stepped rivet structure, maximizing the excellent static performance of precision steel profiles. With a visible profile width of only 38mm, it not only provides an exceptional viewing experience but also ensures the lowest possible UF value while meeting the system's structural load requirements. The minimum interior depth is just 50mm, and the system is not restricted by glass thickness, making it compatible with any opening system. It is an innovative, all-encompassing precision steel profile glass partition system.

Profile specification:

38mm*150mm,38mm*120mm,38mm*100mm,38mm*80mm,38mm*60mm,38mm*50mm

Profile property:

Fire integrity: 1h 1.5h

Fire resistance: 1h 1.5h

Profile thickness: 2.0mm

Zinc content of profile: 200-240g/㎡

Section accuracy: 0.3-0.5mm

Visible external R Angle: R≤0.3mm

Tensile strength: 15.7KN

Material yield strength: 280MPa
