Broken Bridge Fire Rated Curtain Wall Water Resistant Steel Frame Curtain Wall

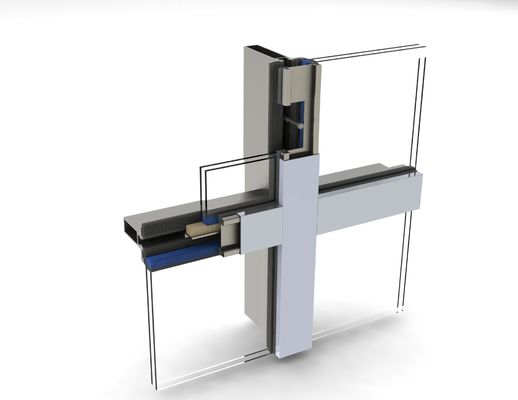

The main profile of the curtain wall frame system breaks through the limitation of the square section of previous products: it is similar to the appearance of T-shaped steel structure, but retains and upgrades the functional surface advantage of TBO-60D - the internal expansion notch is set up to meet the requirements of connecting components in the curtain wall, meet the requirements of the dimension of profile notch and glass panel, and ensure the load requirements of the curtain wall system. The maximum design size of the facade is 210mm, while the width of the back of the profile is only 28mm, which fully demonstrates the ultimate slim beauty and realizes the perfect combination of function, mechanics and aesthetics.

Profile specification:

28mm*210mm,28mm*180mm,28mm*150mm,28mm*120mm,28mm*80mm
